Its biggest advantage is to make the wear of the ring mold more uniform, thereby effectively extending the service life of the ring mold. Although its coil performance is slightly inferior, it is very suitable for materials with good fluidity.
Suggestion: According to the distribution of materials in the ring mold, one should use straight or helical toothed pressure rollers, and the other should use honeycomb type pressure rollers. This combination has a better effect.

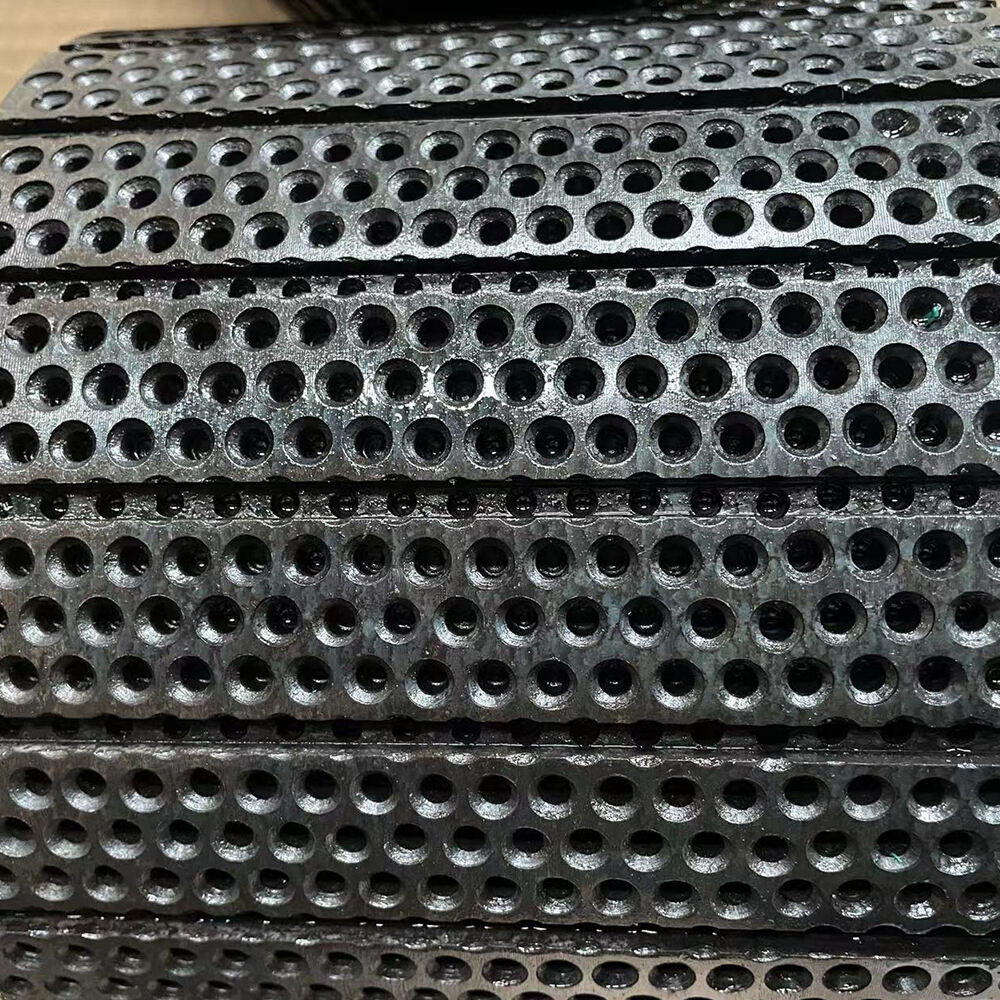

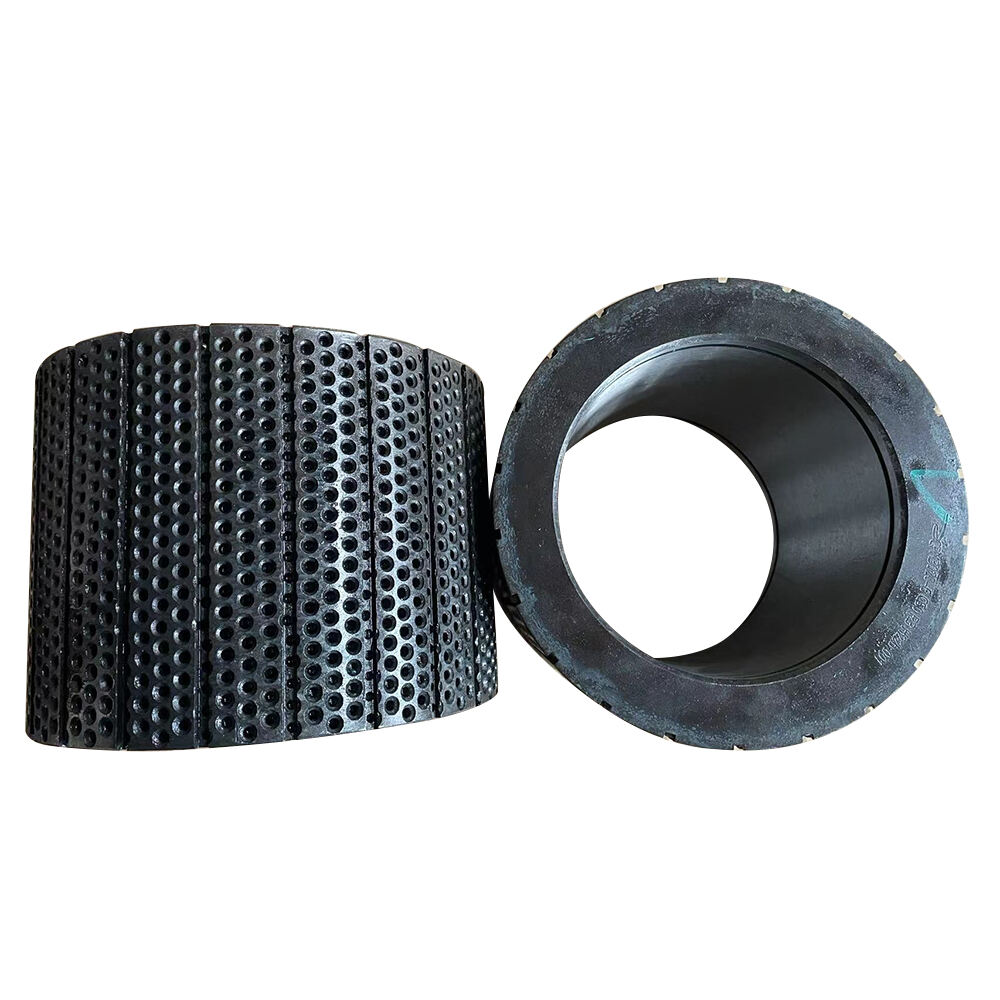

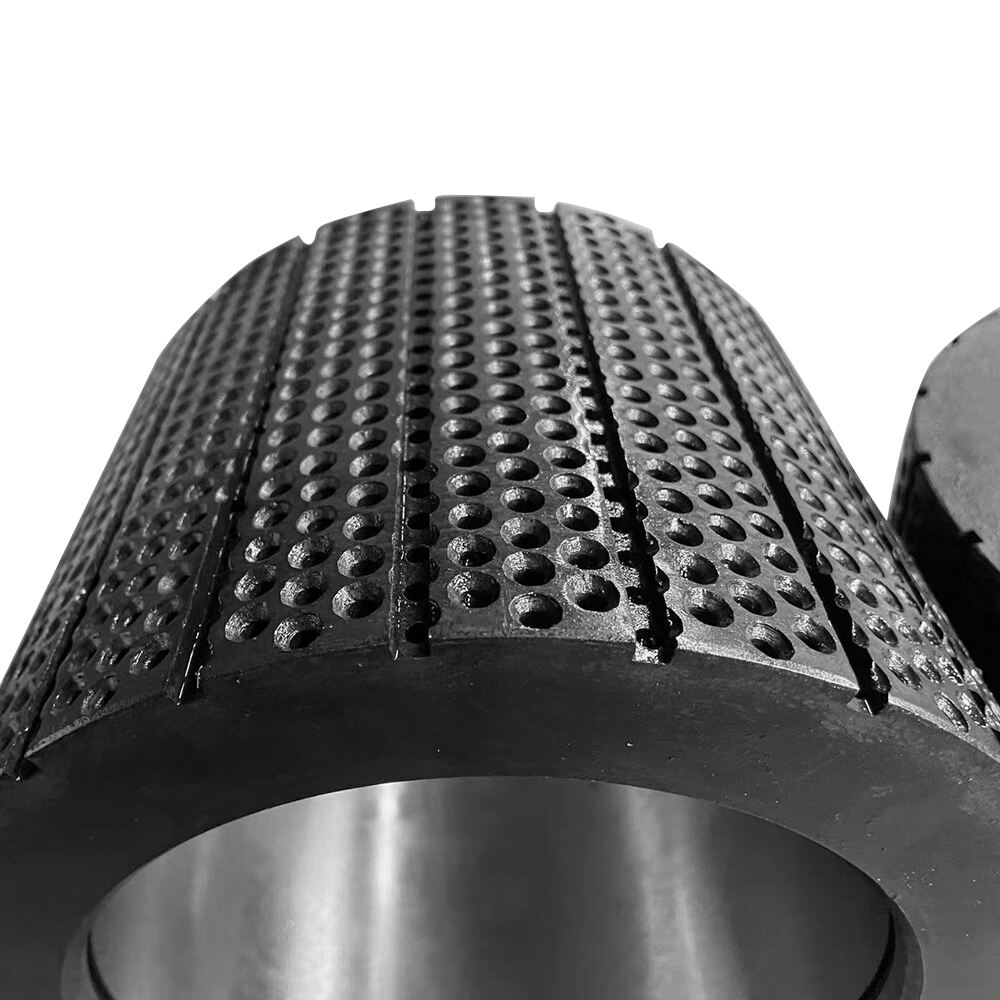

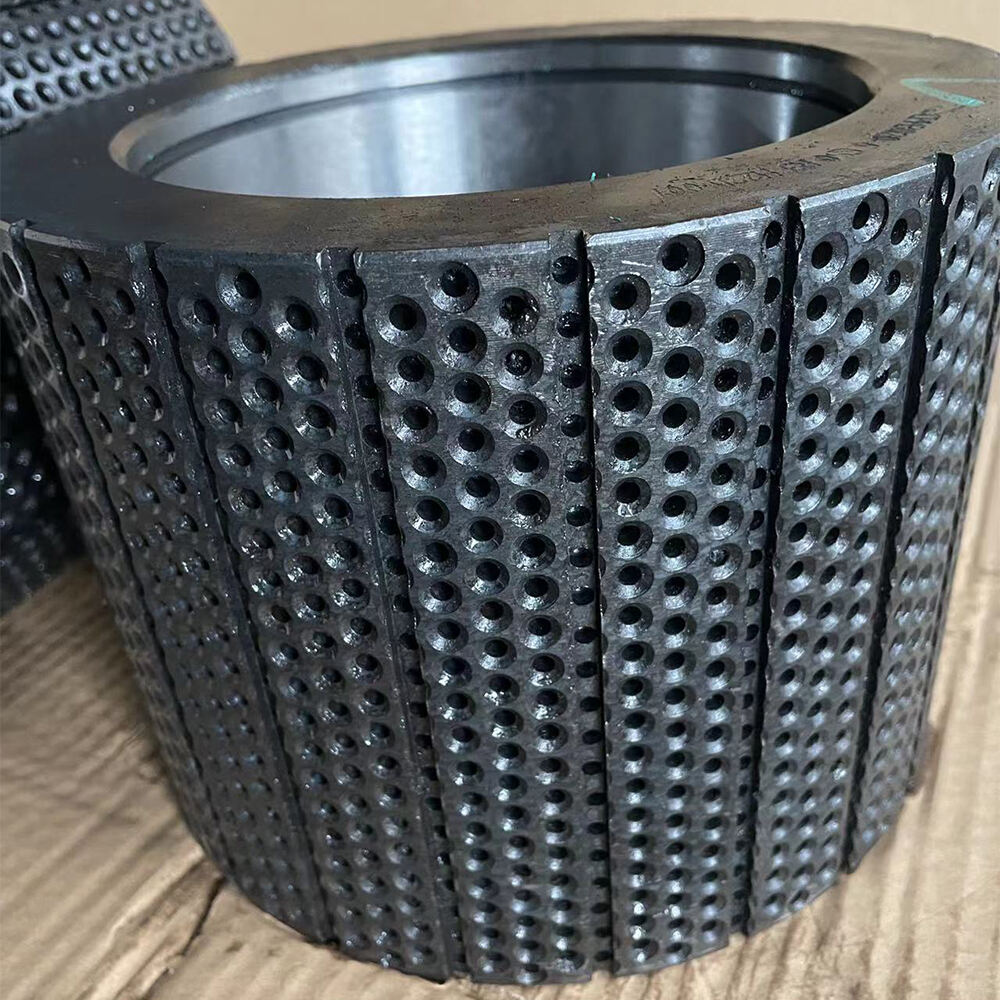

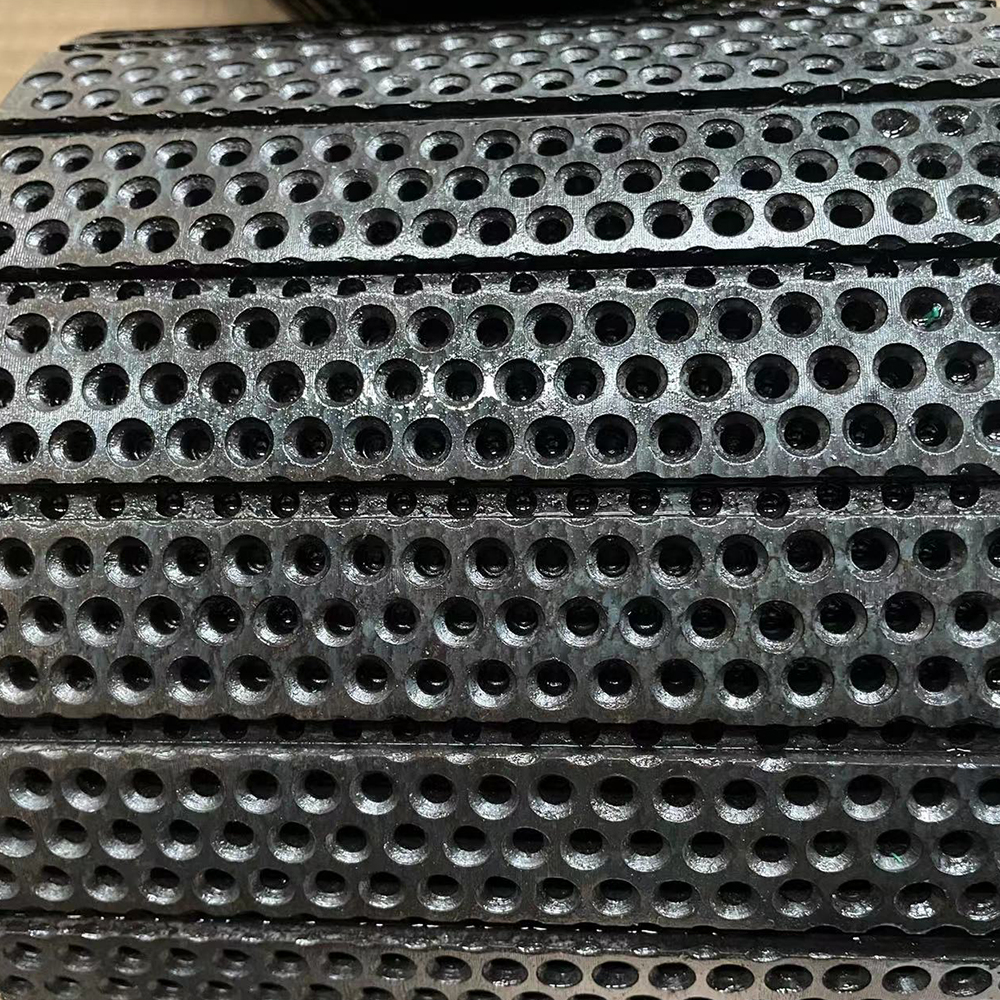

Uniform wear of the ring mold: The design of the honeycomb type pressure roller makes the wear of the ring mold more uniform, which helps to extend the service life of the ring mold.
Strong wear resistance: The honeycomb type pressure roller adopts a special heat treatment process, which makes the surface more wear-resistant and can ensure granulation performance.
Long service life: Due to its strong wear resistance and uniform wear characteristics, the honeycomb type pressure roller has a longer service life.
Suitable for various materials: Honeycomb type pressure rollers are suitable for various materials, such as alloy steel, spring steel, bearing steel, etc.
Working principle and application scenarios of honeycomb roller:
Honeycomb type pressure rollers are mainly used for granulation of livestock and poultry feed. Its working principle is to compress materials into granules through uniform pressure, which is suitable for production processes such as animal feed, bio fermented feed, biomass pellet fuel, etc
The roller shell, commonly known as the Roller Shell or roller shelskin, is an indispensable working component and vulnerable part of the pellet machine. It mainly works in conjunction with pellet machine molds, responsible for processing and shaping various biofuel pellets, animal feed, and other particulate matter. The functions of the roller shell include cutting, kneading, inlaying, and squeezing.
HMT company is committed to research, development, and experimentation in this area, and has achieved significant results. Customized professional pressure rollers for customers based on material characteristics, highly praised by domestic and foreign customers.
HMT’S ROLLER SHELL INTRODUCTION;
1. Pellet mill roller shelll type: feed roller shell, fine chemical roller shell, sawdust roller shell, biomedicalroller shell, etc
2. Tooth of roller shell: straight tooth, helical tooth, circular arc tooth, hole type tooth, cross-type tooth, Tungsten Carbide roller shell, etc.
3. Material: 100Cr6,16MnCr5,48Mn,40Cr, C50，20CrMnTi,20CrMn5
4. Heat treatment:the carburized surface hardness reaches 58-60HRC, the carburized layer depth is 1.6mm, the medium frequency surface hardness reaches 52-58HRC, and the hard layer depth of 50HRC is 5mm
5. It can provide 90% roller shell of pellet mill,Roller shells can be customized
6.pellet mill's roller shell, roller assemble,roller shaft, main shaft, hollow shaft and so on!
HMT offer:
Awila420,Bilco360,Buhler350, Buhler400, Buhler420, Buhler520, Buhler660,CPM2016, CPM3016, CPM3020, CPM3022, CPM7726, CPM7932,CPP150, CPP200,CPP360,CPP300,CSP020,IDAH530, IDAH530F, IDAH635D,MUZL350, MUZL420, MUZL420T, MUZL420TW, MUZL550, MUZL600, MUZL600T, MUZL610TW, MUZL1200, MUZL1210C, MUZL1610C,MZLH250 ,MZLH320, MZLH350, MZLH400, MZLH420, MZLH508, MZLH678, MZLH768,SZLH250 ,SZLH320, SZLH350, SZLH400, SZLH420, SZLH508, SZLH678, SZLH768/SZLJ20, SZLJ320, SZLJ350, SZLJ400, SZLJ420, SZLJ508,OGM-0.8, OGM-1.5, OGM-6,Van Arson C600, Van Arsen750, Van ArsenC900,XGJ560, XGJ850,PTN580, PTN580-C,YEMMAK520,KAHL37-850
