Home > Products > Roller Shell
Uniform temperature and deformation of pressure rollers: Due to the staggered orientation of the pressure rollers in each adjacent frame, the position of the corners often changes during operation, which makes the temperature and deformation of each part more uniform and avoids the phenomenon of splitting.
Twistless high-speed rolling: The centerlines of adjacent frame pressure rollers are offset by an angle from each other, and the pressure rollers do not need to be twisted, enabling high-speed operation without torsion. The product surface quality is good, the accuracy is high, and the tolerance is small.
Simplified control system: The structure of the Y-shaped pressure roller is compact. Adopting integrated transmission simplifies the control system, facilitates automation, and improves work efficiency.

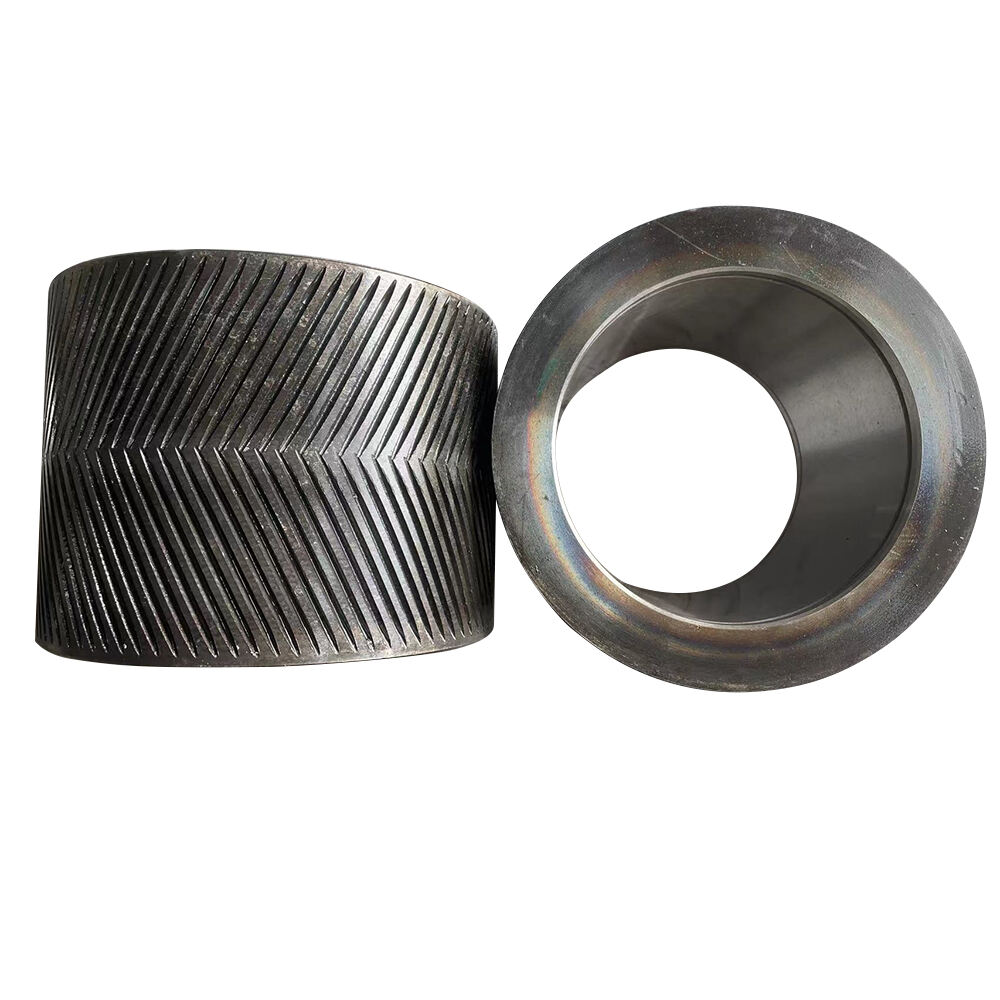

The roller shell, commonly known as the Roller Shell or roller shelskin, is an indispensable working component and vulnerable part of the pellet machine. It mainly works in conjunction with pellet machine molds, responsible for processing and shaping various biofuel pellets, animal feed, and other particulate matter. The functions of the roller shell include cutting, kneading, inlaying, and squeezing.
HMT company is committed to research, development, and experimentation in this area, and has achieved significant results. Customized professional pressure rollers for customers based on material characteristics, highly praised by domestic and foreign customers.
HMT’S ROLLER SHELL INTRODUCTION;
1. Pellet mill roller shelll type: feed roller shell, fine chemical roller shell, sawdust roller shell, biomedicalroller shell, etc

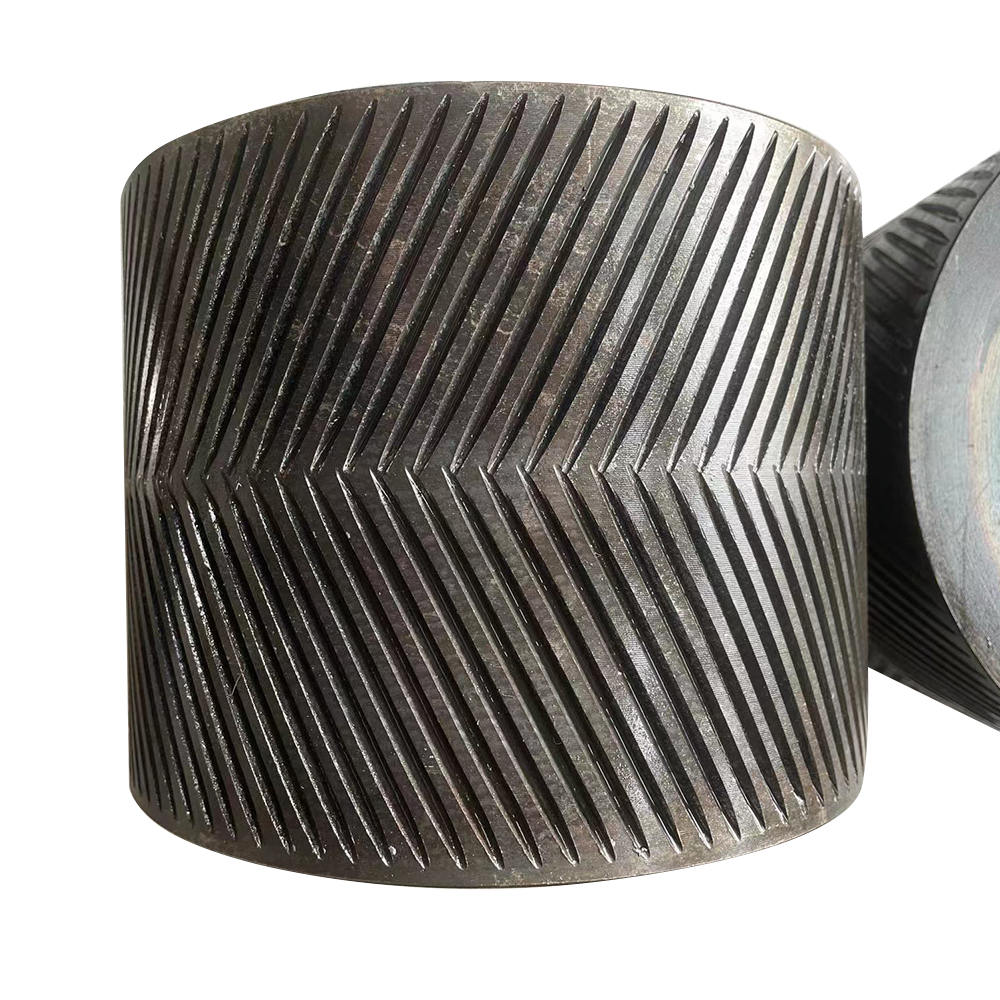

2. Tooth of roller shell: straight tooth, helical tooth, circular arc tooth, hole type tooth, cross-type tooth, Tungsten Carbide roller shell, etc.
3. Material: 100Cr6,16MnCr5,48Mn,40Cr, C50，20CrMnTi,20CrMn5
4. Heat treatment:the carburized surface hardness reaches 58-60HRC, the carburized layer depth is 1.6mm, the medium frequency surface hardness reaches 52-58HRC, and the hard layer depth of 50HRC is 5mm
5. It can provide 90% roller shell of pellet mill,Roller shells can be customized
6.pellet mill's roller shell, roller assemble,roller shaft, main shaft, hollow shaft and so on!
HMT offer:
Awila420,Bilco360,Buhler350, Buhler400, Buhler420, Buhler520, Buhler660,CPM2016, CPM3016, CPM3020, CPM3022, CPM7726, CPM7932,CPP150, CPP200,CPP360,CPP300,CSP020,IDAH530, IDAH530F, IDAH635D,MUZL350, MUZL420, MUZL420T, MUZL420TW, MUZL550, MUZL600, MUZL600T, MUZL610TW, MUZL1200, MUZL1210C, MUZL1610C,MZLH250 ,MZLH320, MZLH350, MZLH400, MZLH420, MZLH508, MZLH678, MZLH768,SZLH250 ,SZLH320, SZLH350, SZLH400, SZLH420, SZLH508, SZLH678, SZLH768/SZLJ20, SZLJ320, SZLJ350, SZLJ400, SZLJ420, SZLJ508,OGM-0.8, OGM-1.5, OGM-6,Van Arson C600, Van Arsen750, Van ArsenC900,XGJ560, XGJ850,PTN580, PTN580-C,YEMMAK520,KAHL37-850
