The design of the combined toothed roller can increase the contact area between the material and the roller surface, thereby improving the crushing efficiency. The teeth on the pressure roller impact, shear, and grind the material during rotation, causing it to be quickly crushed into small pieces. Avoiding severe wear on both ends caused by excessive accumulation of materials at both ends.
The optimized design reduces the noise and vibration generated during equipment operation, meeting environmental requirements.
The combination toothed roller can be equipped with multiple tooth types and can be replaced as needed, making it versatile and reducing investment.

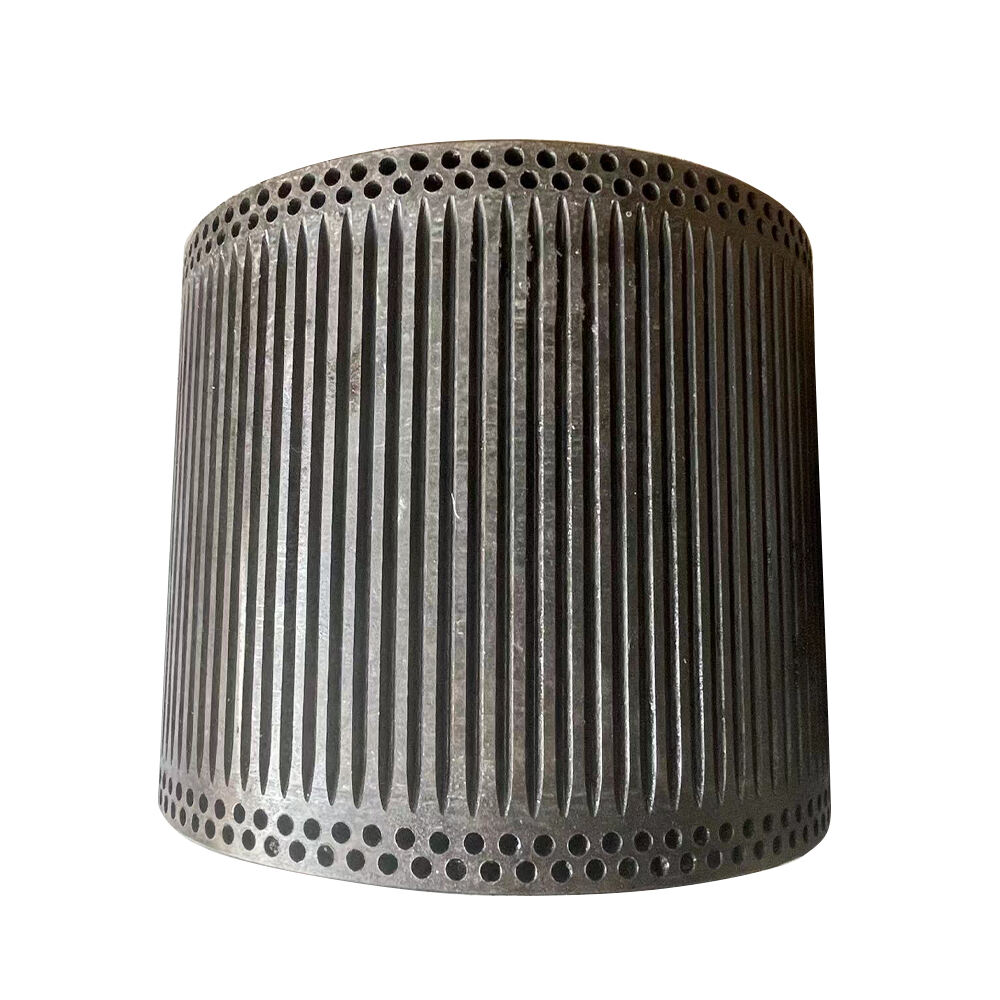

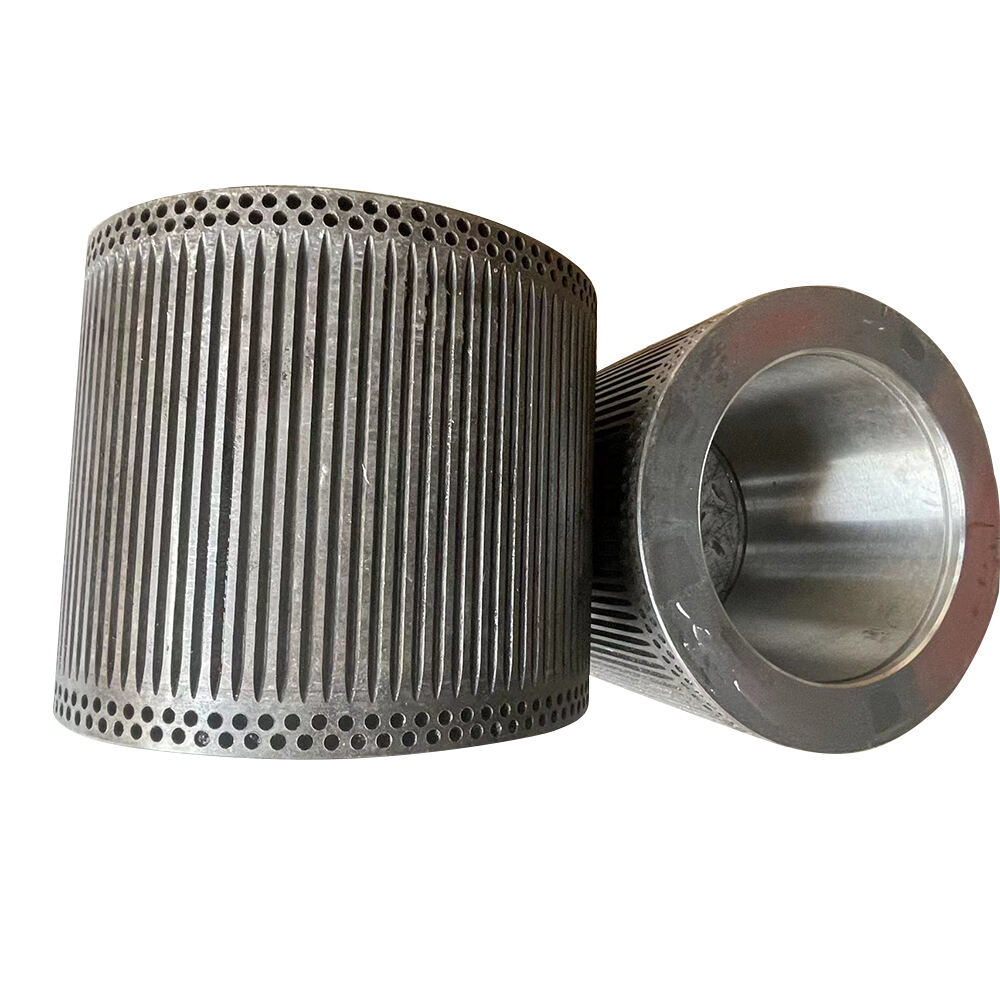

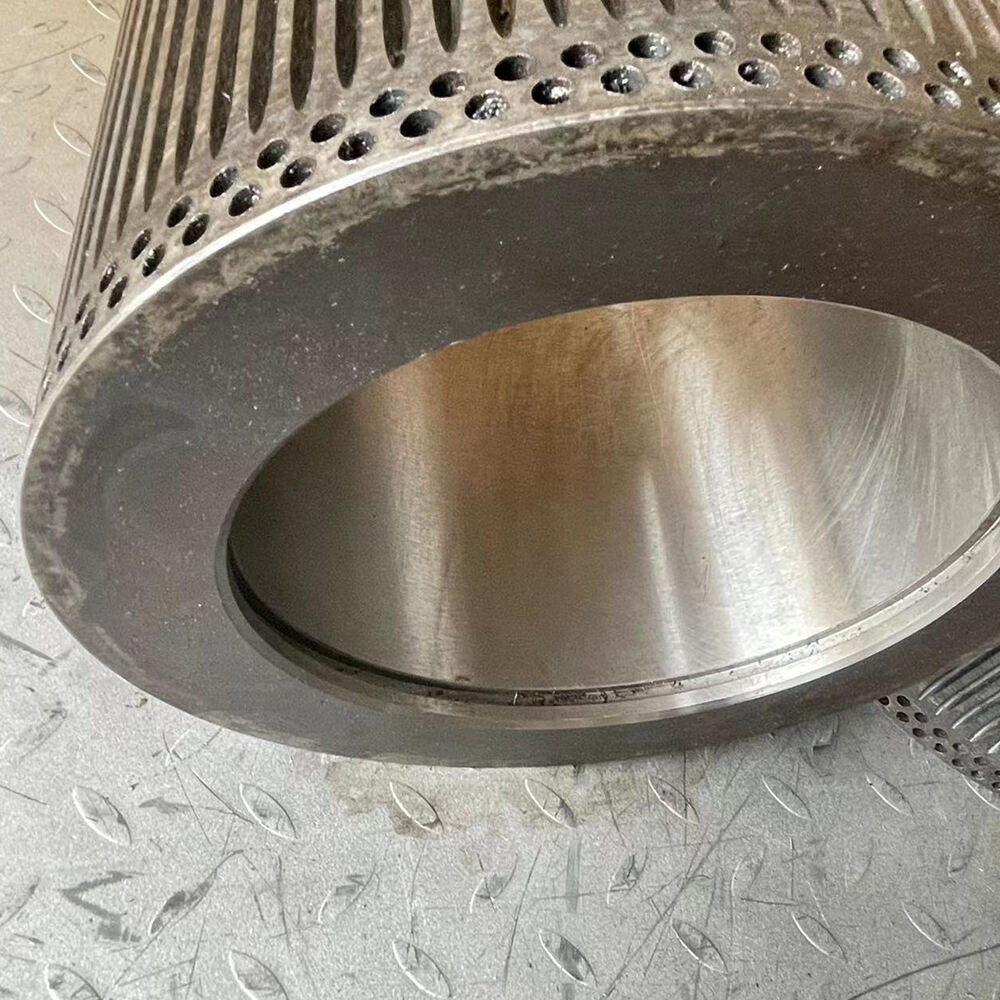

The roller shell, commonly known as the Roller Shell or roller shelskin, is an indispensable working component and vulnerable part of the pellet machine. It mainly works in conjunction with pellet machine molds, responsible for processing and shaping various biofuel pellets, animal feed, and other particulate matter. The functions of the roller shell include cutting, kneading, inlaying, and squeezing.
HMT company is committed to research, development, and experimentation in this area, and has achieved significant results. Customized professional pressure rollers for customers based on material characteristics, highly praised by domestic and foreign customers.
HMT’S ROLLER SHELL INTRODUCTION;
1. Pellet mill roller shelll type: feed roller shell, fine chemical roller shell, sawdust roller shell, biomedicalroller shell, etc

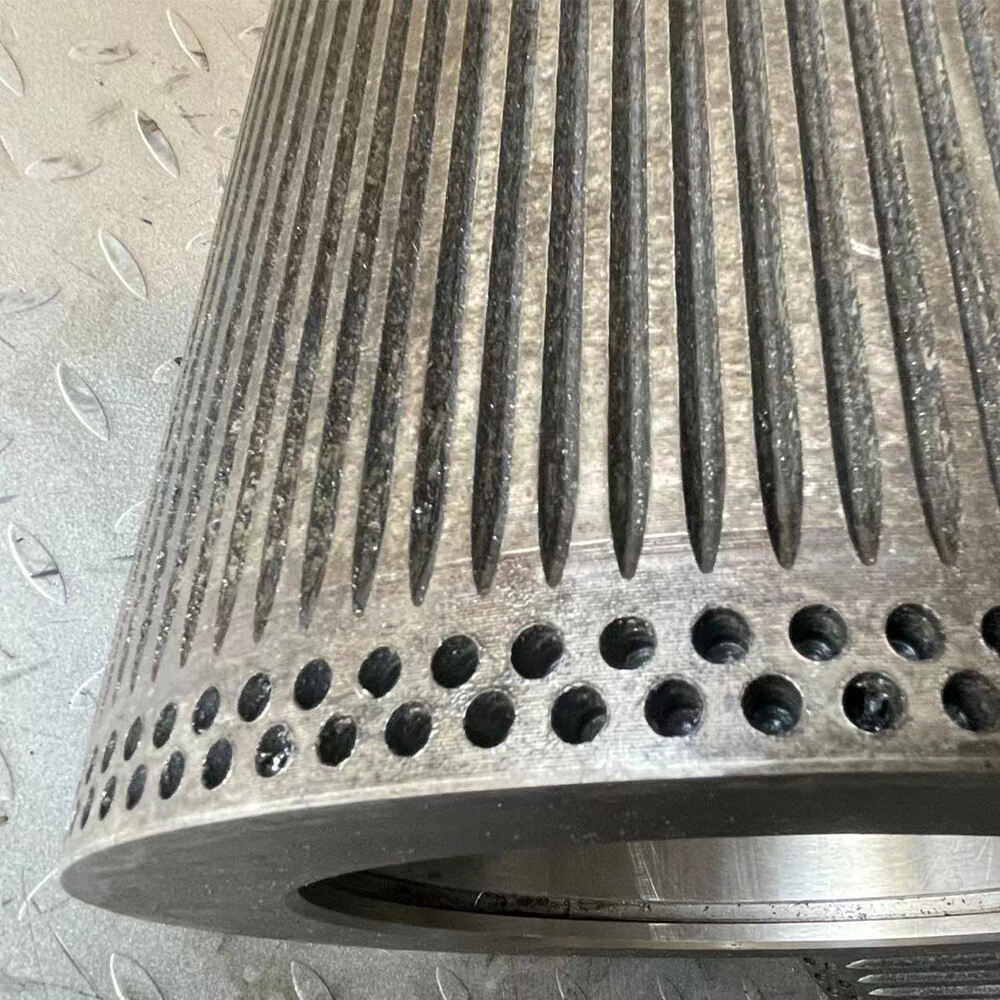

2. Tooth of roller shell: straight tooth, helical tooth, circular arc tooth, hole type tooth, cross-type tooth, Tungsten Carbide roller shell, etc.
3. Material: 100Cr6,16MnCr5,48Mn,40Cr, C50，20CrMnTi,20CrMn5
4. Heat treatment:the carburized surface hardness reaches 58-60HRC, the carburized layer depth is 1.6mm, the medium frequency surface hardness reaches 52-58HRC, and the hard layer depth of 50HRC is 5mm
5. It can provide 90% roller shell of pellet mill,Roller shells can be customized
6.pellet mill's roller shell, roller assemble,roller shaft, main shaft, hollow shaft and so on!
HMT offer:
Awila420,Bilco360,Buhler350, Buhler400, Buhler420, Buhler520, Buhler660,CPM2016, CPM3016, CPM3020, CPM3022, CPM7726, CPM7932,CPP150, CPP200,CPP360,CPP300,CSP020,IDAH530, IDAH530F, IDAH635D,MUZL350, MUZL420, MUZL420T, MUZL420TW, MUZL550, MUZL600, MUZL600T, MUZL610TW, MUZL1200, MUZL1210C, MUZL1610C,MZLH250 ,MZLH320, MZLH350, MZLH400, MZLH420, MZLH508, MZLH678, MZLH768,SZLH250 ,SZLH320, SZLH350, SZLH400, SZLH420, SZLH508, SZLH678, SZLH768/SZLJ20, SZLJ320, SZLJ350, SZLJ400, SZLJ420, SZLJ508,OGM-0.8, OGM-1.5, OGM-6,Van Arson C600, Van Arsen750, Van ArsenC900,XGJ560, XGJ850,PTN580, PTN580-C,YEMMAK520,KAHL37-850
